Westerbeke Petrol 4.2/5.0 BCG - 5.8/7.0 BCGD (Carbi) Low profile - Service Parts
Parts for Westerbeke Petrol Generator 4.2/5.0 BCG & 5.8 / 7.0 BCGD Service Parts
Available online, and instore at our Gold Coast location Marine Energy Systems.
Download Parts Manual Clicking Here.
| Basic Service Parts | Part Number | Remarks |
| Lub Oil Filter | 036918 | |
| Fuel filter element | 047006 | |
| In Line Fuel filter on the lift pump | 048076 | |
| Spark plug | 043071 | need Qty 3 |
| Zinc Anode | 011885 | |
| GASKET, EXCHANGER 2-1/4" W/HOLE | 046519 | Need Qty 2 |
| Impeller Sea water pump | 046622 | |
| BELT, POLY-V 3GR 31.50 | 046813 | |
| BELT Timing | 043036 | |
| Optional Svc Kits | ||
| Parts Kit A | 047002 | |
| Parts Kit B | 047003 | Special order |
| Hose kit | 055170 | |
| Cooling System | ||
| Thermostat | 039378 | |
| Thermostat Gasket | 046124 | |
| Raw Water pump | 055624 | |
| Raw Water pump Repair Kit | 055718 | |
| Circulation Coolant Pump | 043809/ SS 058450 | incl pulley & Gasket |
| Cir Pump Gasket | 043005 | |
| Coolant Filler Cap | 024306 | |
| Heat Exchanger | 047106 | |
| Exhaust Mixing Elbow Kit | 047107 | |
| Engine Mount Isolator | 046272 | |
| Carburator | 047111 | |
| R Kit Carbi | 048667 | |
| Gasket Carbi Mount to Actu BRKT | 046384 | Need Qty 2 |
| Gasket Carbi Mount intake Manifold | 046524 | |
| Oil Dipstick | 048810 | |
| DC/ Ac Electrical Items | ||
| Starter Motor 12V | 046309 | |
| Switch Oil Press STD ( NC) | 037323 | |
| Coolant Temp Switch | 039550 | |
| Switch Exhaust Temp | 032923 | |
| Solenoid Fuel shut off | 048666 | |
| Choke Solenoid | 046930 | |
| Actuator Govenor control | 046490 | |
| Coil Ignition | 042520 | |
| Rotor Distributor | 043050 | |
| Cap Distributor | 043059 | |
| Ignitor Kit 043053 ss | 057317 | |
| S.Plug & Coil Lead/Wire Set | 043060 | |
| Sensoe Magnetic MPU | 046874 | |
| Fuel Lift Pump 046796 SS new type | 058018 | |
| Relay K1/K2 | 041150 | |
| FUSE MTH 8A,250V,.25x1.25 | 033769 | |
| FUSE MDA 30A,250V,.25x1.25 | 043634 | |
| FUSE ATC 30A,32V SPADE STYLE | 048792 | |
| Bridge Rectifier | 043649 | |
| AC Capacitors 450VAC ( 50 Hz) Kits | See link for Kit Specs | |
| 4.2 MCGA/B, BCG, SBCG, MCG- 31.5 mFD | 058511 | (Kit = 046978 x 2 ) |
| 6.2 MCGA/B, 5.2MCG, 5.4 SBCG,5.8 BCGD- 40 mFD | 058513 | (Kit = 046639 x 2 ) |
Original price
$32.00
-
Original price
$32.00
Original price
$32.00
$32.00
-
$32.00
Current price
$32.00

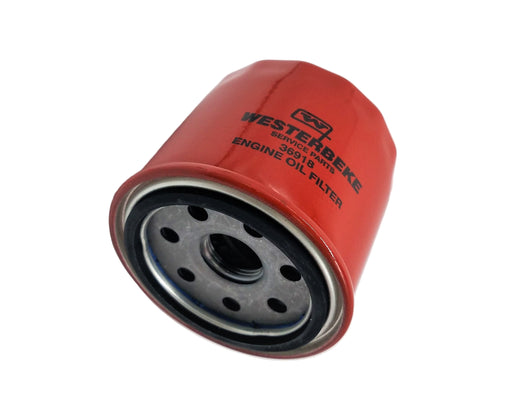

Westerbeke Oil Filter 036918
