Westerbeke Diesel 5.7 (50 Hz) /7.6 ( 60 Hz) BTD /EDTA/ EGTD Service Parts

Parts for Westerbeke Diesel Generato 5.7 /7.6 BTD & EGTD Service Parts)

Available online, with your local dealer, and instore at our Gold Coast location Marine Energy Systems.

Download Parts Manual - For 5.7/7.6 BTD

 Manual For 5.7/7.6 EGTD Currently Under Review.



Basic Service Parts   Part Number  Remarks
Lub Oil Filter 036918
Fuel filter element 030200
In Line Fuel filter on the lift pump 048076
Zinc Anode 011885
Heat Exchanger Brass End Cap  022850
GASKET, EXCHANGER   2.75" 022851 Need Qty 2
O-Ring H Exchanger GSK 019321 Need Qty 2
Impeller Sea water pump  048500
BELT, Models Before 2004 January 301073
Belt Model After 2004 January 038527
Optional Svc Kits

Parts Kit A 041517
Parts Kit B 041518  Special order in
Hose kit 045050
Cooling System

Thermostat 037043  Add 036956 If Req
Thermostat Gasket 036956
Raw Water pump 048080 SS fm 033636 pump
Raw Water pump 048080 Repair Kit  049000  For the New Pump
Raw Water pump 033636 Repair Kit; 034466  Kit for old style pump
Circulation Coolant Pump  037015
Cir Pump Gasket 036957
Coolant Filler Cap 024306
Heat Exchanger - STD Copper 038147
Heat Exchanger - Copper Nickel - HD  044047
Exhaust Mixing Elbow Kit-45Dig 037402
DC/ Ac Electrical Items

Starter Motor- 12V 034552
DC Alternator -12V -50 Amp 049125  Mitsubishi
Fuel Lift Pump 12V -STD 039275
Fuel Stop Solenoid  037100  3 wire Type BTD
FUSE Glass MTH 8A,250V,.25x1.25 033769
Breaker 20Amp 12v Rest push  024683
Bridge Rectifier

043649
Relay K1/2 - 12V 40A 037833
Senders/ Switches/ Solenoids  12v
Oil Press Switch Nomaly Open -STD  037323
Oil Press Switch Normaly Close -Aux  011552/ 056484
Oil Press Sender for Gauge  024132 100 PSI 12V
Temp Switch - shutdown 039550
Temp Sender for Gauge  035109
Exhaust Temp switch - shutdown  032923
Pre Heat / Start solenoide 024639
EDTA -Temp switch/sender- Sensor 042198 EDTA Models only
EDTA - Oil Press sender/switch 049197 049197/056181 EDTA Models only



Eng/Gen Mount Isolator  024776 Qty 4 Req



Filters

$
$
$440.00 - $440.00
$440.00
$440.00 - $440.00
$440.00

Westerbeke 045050 Hose Kit - 5.0 BCDB/ 5.7 /7.6 BTD/EDEA/EGTD

Part Number Description Quantity Unit 011386 CLAMP, HOSE 12 2 EA 011405 CLAMP, HOSE 16 8 EA 056291 HOSE, 1-1/8 IN 3 LG 1 EA 056292 HO...

View full details
$440.00 - $440.00
$440.00
$440.00 - $440.00
$440.00
$511.50 - $511.50
$511.50
$511.50 - $511.50
$511.50

Westerbeke 052853 Lift Pump 12V

$511.50 - $511.50
$511.50
$511.50 - $511.50
$511.50
$605.00 - $605.00
$605.00
$605.00 - $605.00
$605.00

Westerbeke 037015 Fresh Water Pump

Westerbeke 037015 Fresh Water Pump for 5.0-5.5 BCD & 5.7-7.6 BTD/ EDEA/EGTD Models

$605.00 - $605.00
$605.00
$605.00 - $605.00
$605.00
$137.50 - $137.50
$137.50
$137.50 - $137.50
$137.50

Westerbeke 036961 Glow Plug 12V (5.7kw)

$137.50 - $137.50
$137.50
$137.50 - $137.50
$137.50
$1,045.00 - $1,045.00
$1,045.00
$1,045.00 - $1,045.00
$1,045.00

Westerbeke 037091 Injector

$1,045.00 - $1,045.00
$1,045.00
$1,045.00 - $1,045.00
$1,045.00
$1,595.00 - $1,595.00
$1,595.00
$1,595.00 - $1,595.00
$1,595.00

Westerbeke 037117 Overhaul Gasket Kit

$1,595.00 - $1,595.00
$1,595.00
$1,595.00 - $1,595.00
$1,595.00
$858.00 - $858.00
$858.00
$858.00 - $858.00
$858.00

Westerbeke Seawater Pump 048080 (033636)

In stock

Genuine Westerbeke seawater pump 048080. Complete with impeller kit 048500. Add mounting gasket 030326 if needed. Use repair kit 049000. This pump ...

View full details
$858.00 - $858.00
$858.00
$858.00 - $858.00
$858.00
$401.50 - $401.50
$401.50
$401.50 - $401.50
$401.50

Westerbeke 049000 Kit, Water Pump (048080)

Pump repair kit for Westerbeke 048080 pumps.

$401.50 - $401.50
$401.50
$401.50 - $401.50
$401.50
$7.70 - $7.70
$7.70
$7.70 - $7.70
$7.70

Westerbeke 030326 Mounting Gasket for Seawater Pump 048080 (033636)

Genuine Westerbeke part 030326 mounting gasket for seawater pump 048080.  Westerbeke gasket 030326.

$7.70 - $7.70
$7.70
$7.70 - $7.70
$7.70
$14.30 - $14.30
$14.30
$14.30 - $14.30
$14.30

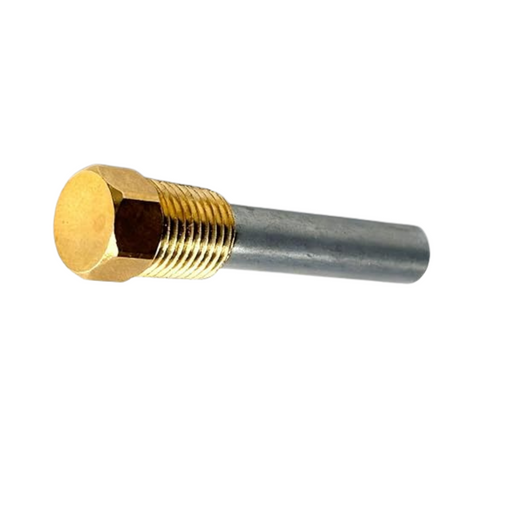

Westerbeke Zinc Anode 011885

$14.30 - $14.30
$14.30
$14.30 - $14.30
$14.30
$25.00 - $25.00
$25.00
$25.00 - $25.00
$25.00

Westerbeke Oil Filter 036918

$25.00 - $25.00
$25.00
$25.00 - $25.00
$25.00
$93.50 - $93.50
$93.50
$93.50 - $93.50
$93.50

Westerbeke (Primary) Fuel Filter 048076

$93.50 - $93.50
$93.50
$93.50 - $93.50
$93.50
$1.50 - $1.50
$1.50
$1.50 - $1.50
$1.50

Westerbeke 019321 O Ring (Heat Exchanger)

O-ring for end cover on Westerbeke heat exchangers.

$1.50 - $1.50
$1.50
$1.50 - $1.50
$1.50
$79.20 - $79.20
$79.20
$79.20 - $79.20
$79.20

Westerbeke 038527 Belt

$79.20 - $79.20
$79.20
$79.20 - $79.20
$79.20
