Westerbeke Petrol 4.2/5.0 - 6.2/7.0 - 7.6/9.5 - MCGA/B ( EFI) Service Parts

Parts for Westerbeke Petrol Generator 6.2MCGA (50hz) / 7.5MCGA (60hz)

Available online, and instore at our Gold Coast location Marine Energy Systems.

Download 4.2/5.0-6.2/70  Parts Manual Clicking Here.

Download 7.6 / 9.5 MCGB Parts Manual Click here

Basic Service Parts   Part Number  Remarks
Lub Oil Filter 036918
Fuel filter element 047006
In Line Fuel filter on the lift pump 048076
Spark plug  056754  need Qty 3
Zinc Anode 011885
GASKET, EXCHANGER 2-1/4" W/HOLE     046519 Need Qty 2
O-Ring HE Gasket 019321
Impeller Sea water pump  046622
BELT, POLY-V 3GR 31.50 056633
Belt Timing 057076
Optional Svc Kits

Parts Kit A  ( 4.2 - 6.2 Kw)  056910
Hose Kit (4.2-6.2 Kw)  056912



Parts Kit A ( 7.6 Kw)  057806
Hose Kit ( 7.6 Kw)  058033
Cooling System

Thermostat 042343
Thermostat Gasket 056584
Thermostat Housing 056622
Raw Water pump 055624
Raw Water pump Repair Kit 055718
Circulation Coolant Pump  056885
Cir Pump Gasket 057077
Coolant Filler Cap / Pressure Cap 024306
Heat Exchanger - 4.2-6.2 Models  057101 4.2/5.0-6.2/7.0 Kw
Heat Exchanger 7.6 Models  057255 7.6/9.5 Kw
Exhaust Mixing Elbow Kit- REARX 057066  STD Side Discharge
Exhaust Mixing Elbow Kit- SIDEX 057067 Front 90 Dig Discharge
Gen /Eng mount Isolator 170LB-M8
055518
DC/ Ac Electrical Items

Starter Motor 12V 046309
Switch oil Presssure  037323
Sender Oil Press  4.2-6.2 models 056181
Sender Oil Press 7.6 model  057229
Sensor , MAP Water temp 048989
Sensor temp  4.2-6.2 Models  042198
Switch Temp exhaust 032923
Coil Ignition for Each plug/ Cly 056702  Qty As Req






FUSE MTH 8A,250V,.25x1.25 033769
FUSE MDA 30A,250V,.25x1.25 043634
FUSE ATC 30A,32V SPADE STYLE 048792
FUSE ATM 10A 32V IP 056670
FUSE AGC 0.5A,250V,0.25x1.25 056671
Relay 30A 041150



AC Capacitors 450VAC ( 50 Hz) Kits
See link for Kit Specs
4.2 MCGA/B, BCG, SBCG, MCG- 31.5 mFD 058511 (Kit = 046978 x 2 )
6.2 MCGA/B, 5.2MCG, 5.4 SBCG,5.8 BCGD- 40 mFD 058513 (Kit = 046639 x 2 )
7.6 MCGA/B - 45 mFD 058514 (Kit = 057016 x 2 )

Filters

$
$
$3,180.00 - $3,180.00
$3,180.00
$3,180.00 - $3,180.00
$3,180.00

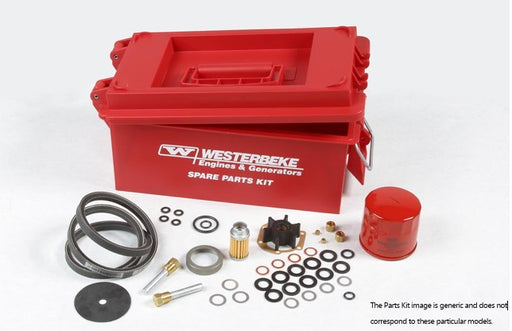

Westerbeke 4.2 & 6.2 MCGA/B Spare Parts Kit B 056911

Spare Parts Kit A for Westerbeke Petrol Generators 4.2 & 6.2 MCGA Part Number Description Quantity Unit 011885 ZINC 1/4NPT x 1-3/4 2 EA ...

View full details
$3,180.00 - $3,180.00
$3,180.00
$3,180.00 - $3,180.00
$3,180.00
$748.00 - $748.00
$748.00
$748.00 - $748.00
$748.00

Westerbeke 4.2 & 6.2 MCGA/B Spare Parts Kit A 056910

Spare Parts Kit A for Westerbeke Petrol Generators 4.2 & 6.2 MCGA Part Number Description Quantity Unit 011885 ZINC 1/4NPT x 1-3/4 2 EA ...

View full details
$748.00 - $748.00
$748.00
$748.00 - $748.00
$748.00
$797.50 - $797.50
$797.50
$797.50 - $797.50
$797.50

Westerbeke Seawater Pump 055624 (supercedes 042026)

Seawater pump 055624. Supercedes previous pumps 046120 / 042026. Complete pump with Impeller Kit 046622. For repair kit, use Westerbeke 055718.

$797.50 - $797.50
$797.50
$797.50 - $797.50
$797.50
$104.50 - $104.50
$104.50
$104.50 - $104.50
$104.50

Westerbeke Impeller Kit 046622 (For Pump 055624)

Impeller kit 046622. Use with seawater pump 055624 (previous 042026).

$104.50 - $104.50
$104.50
$104.50 - $104.50
$104.50
$456.50 - $456.50
$456.50
$456.50 - $456.50
$456.50

Westerbeke Water Pump Kit 055718

Repair kit for Westerbeke seawater pump 055624.

$456.50 - $456.50
$456.50
$456.50 - $456.50
$456.50
$58.30 - $58.30
$58.30
$58.30 - $58.30
$58.30

Westerbeke Rectifier, Bridge BTD/ BCGTC 50 AMP 043649

$58.30 - $58.30
$58.30
$58.30 - $58.30
$58.30
$50.60 - $50.60
$50.60
$50.60 - $50.60
$50.60

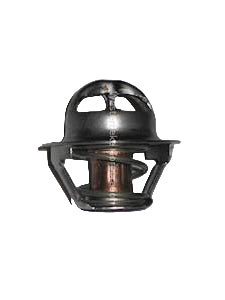

Westerbeke Thermostat 180F 5-7 SBCG 042343

$50.60 - $50.60
$50.60
$50.60 - $50.60
$50.60
$871.20 - $871.20
$871.20
$871.20 - $871.20
$871.20

Westerbeke MCGA Gasket Kit 056957

Complete Gasket Kit for Westerbeke MCGA petrol generators.

$871.20 - $871.20
$871.20
$871.20 - $871.20
$871.20
$17.60 - $17.60
$17.60
$17.60 - $17.60
$17.60

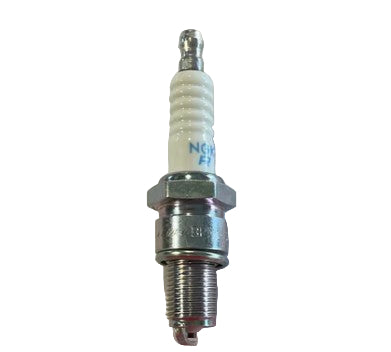

Westerbeke Sparkplug 056754

Westerbeke 056754 Spark plug - MCGA/B

$17.60 - $17.60
$17.60
$17.60 - $17.60
$17.60
$8.80 - $8.80
$8.80
$8.80 - $8.80
$8.80

Westerbeke Fuse 056670

$8.80 - $8.80
$8.80
$8.80 - $8.80
$8.80
$58.30 - $58.30
$58.30
$58.30 - $58.30
$58.30

Westerbeke BELT , POLY-V 056633

Westerbeke Belt 056633 POLY-V 3GR 31.50

$58.30 - $58.30
$58.30
$58.30 - $58.30
$58.30
$4.95 - $4.95
$4.95
$4.95 - $4.95
$4.95

Westerbeke FUSE 30A - 32V Spade Style 048792

$4.95 - $4.95
$4.95
$4.95 - $4.95
$4.95
$93.50 - $93.50
$93.50
$93.50 - $93.50
$93.50

Westerbeke 048076 Primary inline Fuel Filter 80 Micron

Westerbeke 048076 Primary inline Fuel Filter 80 Micron

$93.50 - $93.50
$93.50
$93.50 - $93.50
$93.50
$25.30 - $25.30
$25.30
$25.30 - $25.30
$25.30

Westerbeke Zinc Anode 011885

Westerbeke 011885 Zinc anode

$25.30 - $25.30
$25.30
$25.30 - $25.30
$25.30
$9.90 - $9.90
$9.90
$9.90 - $9.90
$9.90

Westerbeke Fuse 30A 043634

Westerbeke 043634 - 30A

$9.90 - $9.90
$9.90
$9.90 - $9.90
$9.90
$4.95 - $4.95
$4.95
$4.95 - $4.95
$4.95

Westerbeke FUSE 8 AMP 033769

Westerbeke 033769 Fuse 8 AMP

$4.95 - $4.95
$4.95
$4.95 - $4.95
$4.95
$32.00 - $32.00
$32.00
$32.00 - $32.00
$32.00

Westerbeke Oil Filter 036918

Westerbeke 036918 Lube oil filter

$32.00 - $32.00
$32.00
$32.00 - $32.00
$32.00
$8.80 - $8.80
$8.80
$8.80 - $8.80
$8.80

Westerbeke Gasket, Heat Exchanger 2-1/4" 046519

$8.80 - $8.80
$8.80
$8.80 - $8.80
$8.80
$30.80 - $30.80
$30.80
$30.80 - $30.80
$30.80

Westerbeke Petrol Fuel Filter (Element) 047006

Westerbeke Petrol Fuel Filter (Element) 047006. Used in most Westerbeke petrol generators. For diesel generators and engines, use diesel fuel filte...

View full details
$30.80 - $30.80
$30.80
$30.80 - $30.80
$30.80
$22.00 - $22.00
$22.00
$22.00 - $22.00
$22.00

Westerbeke Cap - Pressure 15PSI 024306

Westerbeke Cap - Pressure 15PSI 024306. This is an original Westerbeke part.

$22.00 - $22.00
$22.00
$22.00 - $22.00
$22.00
