Westerbeke Diesel 26.0/33.0 EDE/A & 23.0/ 29.0 EGED Service Parts

Parts for Westerbeke Diesel Generators Models ( 50 Hz / 60 Hz) with 4 Cylinder Engine

26.0 / 33.0 EDE/A - NEMA 2000/ Westerlink

23.0 / 29.0 EGED- New  electronic Governor type

Available online, with your local dealer, and in-store at our Gold Coast location Marine Energy Systems.

Download Parts Manual -

26.0 / 33.0 EDE/A - NEMA 2000/ Westerlink - Parts List - D-net MAY2013

23.0 / 29.0 EGED- New; electronic Governor type Parts List - 057352



Basic Service Parts   Part Number  Remarks
Lub Oil Filter 011951
Fuel filter element 052985
In Line Fuel filter on the lift pump 048076
Air filter element -  N/A
Zinc Anode 011885
Heat Exchanger Brass End Cap 022850
GASKET, EXCHANGER   2.75" 022851 Need Qty 2
O-Ring H Exchanger GSK 019321 Need Qty 2
Impeller Sea water pump  053365
Belt  053308 EDE/A
Belt 011672 EGED Model 60-72A Alternator
Optional Svc Kits

Parts Kit A 053101 Special order in
Parts Kit B 053102  Special order in
Hose kit 054849
Cooling System

Thermostat 053282
Thermostat Gasket  052946
Raw Water pump 052650
Raw Water pump Repair Kit  053375
Circulation Coolant Pump  053315
Cir Pump Gasket 053265
Coolant Filler Cap 024306
Heat Exchanger - STD Copper 052493
Heat Exchanger  Mounting O-ring  052595
Exhaust Mixing Elbow Kit-45Dig 049762
DC/ Ac Electrical Items

Starter Motor- 12V 053259
DC Alternator -12V -60 Amp Kit 055147  Kit Incl 43953 Alt Mitsubishi
Fuel Lift Pump 12V Seal conn 052853  EDE/A Models
Fule Lift Pump 12V -STD 039275  EGED Models
Fuel Actuator Solenoid EDE/A 052936  EDE/A
Fuel Shut off Solenoid (EGED) 053257  EGED
Glow Plug 12V 053140
FUSE  7.5 A -32V Spade (EGED) 056252
FUSE  12A,32V - EDE/A 053079  EDE/A
Breaker Circut 10Amp ( EGED ) 036563
Breaker Circut 20Amp (EGED) 024683 Push Botton Reset
Relay K1/2/3 - 12V 40A -EDE/A 041150  QTY 3 in USE
Relay K1/2 - 12V /40A- (EGED) 037833  QTY 2 in USE
Senders/ Switches/ Solenoids  12v
Oil Press Switch Nomaly Open -STD EGED  037323
Oil Press Switch / Sender  EDE/A  056181
Oil Press Sender for Gauge - EGED 024132 100 PSI 12V
Temp Switch - shutdown -EGED 039550
Temp Sender for Gauge - EGED 035109
Exhaust Temp switch - shutdown  032923
Pre Heat / Start solenoide-  024639
Air/ Water Temp Sensor - EDE/A 042198



Eng/Gen Mount Isolator -  Front  301136
Eng/Gen Mount Isolator - Rear 015239









Filters

$
$
$25.30 - $25.30
$25.30
$25.30 - $25.30
$25.30

Westerbeke Zinc Anode 011885

Westerbeke 011885 Zinc anode

$25.30 - $25.30
$25.30
$25.30 - $25.30
$25.30
$93.50 - $93.50
$93.50
$93.50 - $93.50
$93.50

Westerbeke 048076 Primary inline Fuel Filter 80 Micron

Westerbeke 048076 Primary inline Fuel Filter 80 Micron

$93.50 - $93.50
$93.50
$93.50 - $93.50
$93.50
$704.00 - $704.00
$704.00
$704.00 - $704.00
$704.00

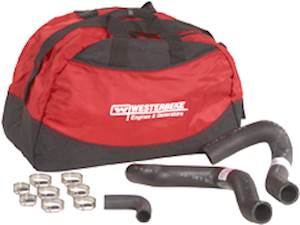

Westerbeke 054849 Hose kit 26/33 EDE/A - 23/29 EGED

Westerbeke 054849 Hose kit 26/33 EDE/A - 23/29 EGED Part Number Description Quantity Unit 011341 CLAMP, HOSE 08 2 EA 011405 CLAMP, HOSE 16...

View full details
$704.00 - $704.00
$704.00
$704.00 - $704.00
$704.00
$97.90 - $97.90
$97.90
$97.90 - $97.90
$97.90

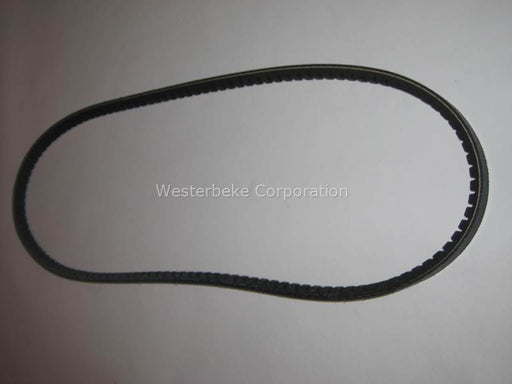

Westerbeke 011672 Drive Belt

Westerbeke 011672 Drive Belt

$97.90 - $97.90
$97.90
$97.90 - $97.90
$97.90
$79.20 - $79.20
$79.20
$79.20 - $79.20
$79.20

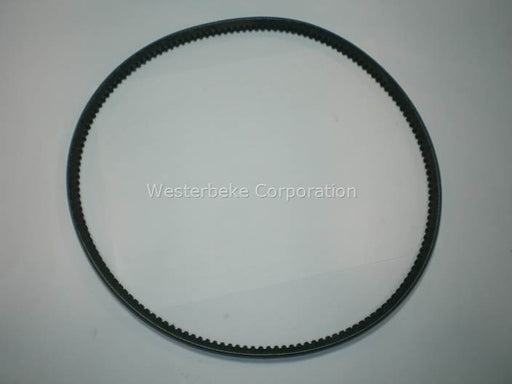

Westerbeke 053308 Drive Belt 26.0/33.0 EDE/A

Westerbeke 053308 Drive Belt 26.0/33.0 EDE/A

$79.20 - $79.20
$79.20
$79.20 - $79.20
$79.20
$132.00 - $132.00
$132.00
$132.00 - $132.00
$132.00

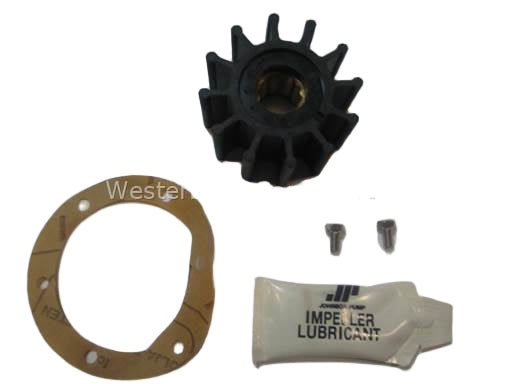

Westerbeke 053365 Impeller kit for pump 052650

Westerbeke 053365 Impeller kit for pump 052650

$132.00 - $132.00
$132.00
$132.00 - $132.00
$132.00
$1.50 - $1.50
$1.50
$1.50 - $1.50
$1.50

Westerbeke 019321 O Ring (Heat Exchanger)

O-ring for end cover on Westerbeke heat exchangers.

$1.50 - $1.50
$1.50
$1.50 - $1.50
$1.50
$18.70 - $18.70
$18.70
$18.70 - $18.70
$18.70

2.75" Gasket End Cover Heat Exchanger 022851 22851

Westerbeke Gasket, Heat Exchanger 022851. 2.75" OD / 1.5mm thick. This is an original Westerbeke part 022851.

$18.70 - $18.70
$18.70
$18.70 - $18.70
$18.70
$35.20 - $35.20
$35.20
$35.20 - $35.20
$35.20

Westerbeke 022850 Brass End cap for Heat exchanger 2.75"

Westerbeke 022850 Brass End cap for Heat exchanger 2.75"

$35.20 - $35.20
$35.20
$35.20 - $35.20
$35.20
$148.50 - $148.50
$148.50
$148.50 - $148.50
$148.50

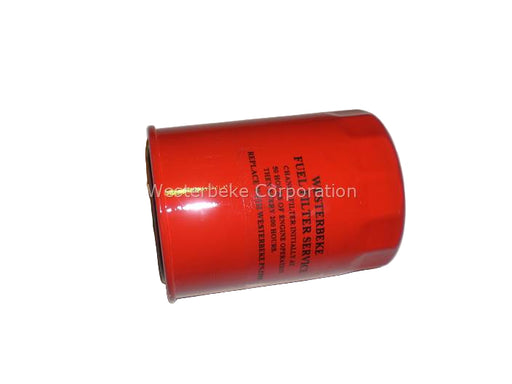

Westerbeke 052985 Fuel filter

Westerbeke 052985 Fuel filter

$148.50 - $148.50
$148.50
$148.50 - $148.50
$148.50
$46.20 - $46.20
$46.20
$46.20 - $46.20
$46.20

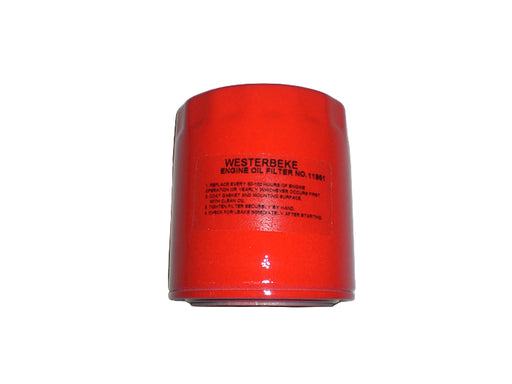

Westerbeke 011951 Oil filter

Westerbeke 011951 Oil filter

$46.20 - $46.20
$46.20
$46.20 - $46.20
$46.20
