Westerbeke Petrol 3.5 MCGA/B ( EFI ) Service Parts

Service Parts for Westerbeke Petrol Generator 3.5 MCGA/B  Service Parts

Available online, and instore at our Gold Coast location Marine Energy Systems.

Download Parts Manual - Parts List 058354

Basic Service Parts   Part Number  Remarks
Lub Oil Filter 048078
Fuel filter element 047006
In Line Fuel filter on the lift pump 048076
Spark plug  045352  need Qty 2
Zinc Anode Heat Exchnager - Fresh W Cool 011885
GASKET, EXCHANGER 1-7/8i n  W/HOLE     033298 Need Qty 2
O-Ring Heat excahnger end cover  019321
Impeller Sea water pump  048065
BELT, Pump Drive 046869
Belt Generator Drive -50 Hz 057516



Optional Svc Kits

Parts kit A 057713
Parts Kit B
 Special order
Hose Kit 057716
Cooling System

Thermostat 057535
Thermostat Gasket 048150
Raw Water pump 046814
Raw Water pump Repair Kit 048066
Freish water coolant pump   047970
Fresh Water Coolant pump Kit  048625
Coolant Filler Cap 053408
Heat Exchanger  057538
Exhaust Mixing Elbow / CATALYST ASSY 049103
Oil Dipstick 057439
DC/ Ac Electrical Items

Stater Motor 12v  057506
Solenoid Starter  057593
Alternator 12 vdc 057505



Switch Oil Press STD ( NC)  037323
Sensor  W temp 042198
Switch Exhaust Temp 032923






Moduel Ignition Control 057509
Battey Charger  057497


Sernsor MPU

Coil Ignition with S plug Lead wire  057495



Fuel Moduel  057328
Fuel Lift Pump  057828



FUSE MTH 8A 033769
Relay 12VDC 30A 041150  3 x in use K1.2.3


Rectifier


Engine Mount Isolator  057470 Need 4 Pcs
x










Filters

$
$
$38.50 - $38.50
$38.50
$38.50 - $38.50
$38.50

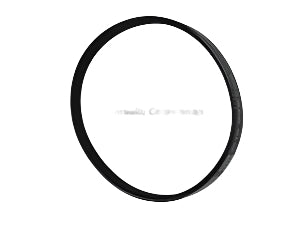

Westerbeke 046869 Drive Belt Poly-V 3GR

Westerbeke 046869 Drive Belt Poly-V 3GR

$38.50 - $38.50
$38.50
$38.50 - $38.50
$38.50
$96.80 - $96.80
$96.80
$96.80 - $96.80
$96.80

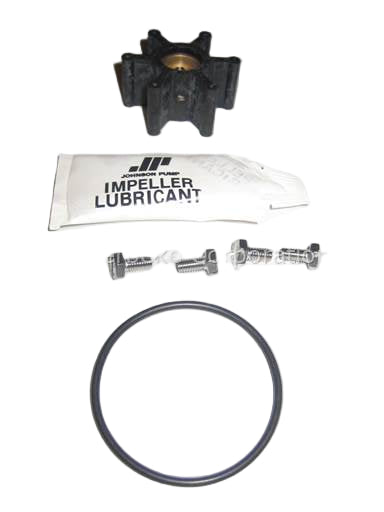

Westerbeke 048065 Impeller kit for Pump 046814

Westerbeke 048065 Impeller kit for Pump 046814

$96.80 - $96.80
$96.80
$96.80 - $96.80
$96.80
$1.50 - $1.50
$1.50
$1.50 - $1.50
$1.50

Westerbeke 019321 O Ring (Heat Exchanger)

O-ring for end cover on Westerbeke heat exchangers.

$1.50 - $1.50
$1.50
$1.50 - $1.50
$1.50
$7.70 - $7.70
$7.70
$7.70 - $7.70
$7.70

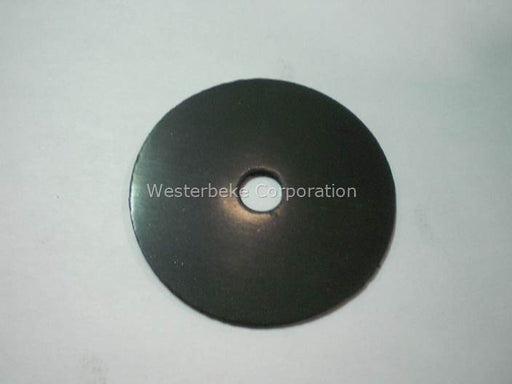

Westerbeke 033298 Gasket Heat Exchnager ( 048296) end 1-7/8in

Westerbeke 033298 Gasket Heat Exchnager ( 048296)  end 1-7/8in

$7.70 - $7.70
$7.70
$7.70 - $7.70
$7.70
$14.30 - $14.30
$14.30
$14.30 - $14.30
$14.30

Westerbeke Zinc Anode 011885

Westerbeke 011885 Zinc anode

$14.30 - $14.30
$14.30
$14.30 - $14.30
$14.30
$27.50 - $27.50
$27.50
$27.50 - $27.50
$27.50

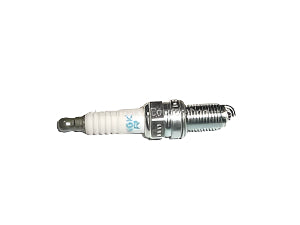

Westerbeke 045352 Sparl plug - for petrolGen 3.0 BPMG/3.5 SBCG

Westerbeke 045352 Sparl plug - for petrolGen 3.0 BPMG/3.5 SBCG

$27.50 - $27.50
$27.50
$27.50 - $27.50
$27.50
$93.50 - $93.50
$93.50
$93.50 - $93.50
$93.50

Westerbeke 048076 Primary inline Fuel Filter 80 Micron

Westerbeke 048076 Primary inline Fuel Filter 80 Micron

$93.50 - $93.50
$93.50
$93.50 - $93.50
$93.50
$30.80 - $30.80
$30.80
$30.80 - $30.80
$30.80

Westerbeke Petrol Fuel Filter (Element) 047006

Westerbeke Petrol Fuel Filter (Element) 047006. Used in most Westerbeke petrol generators. For diesel generators and engines, use diesel fuel filte...

View full details
$30.80 - $30.80
$30.80
$30.80 - $30.80
$30.80
$38.50 - $38.50
$38.50
$38.50 - $38.50
$38.50

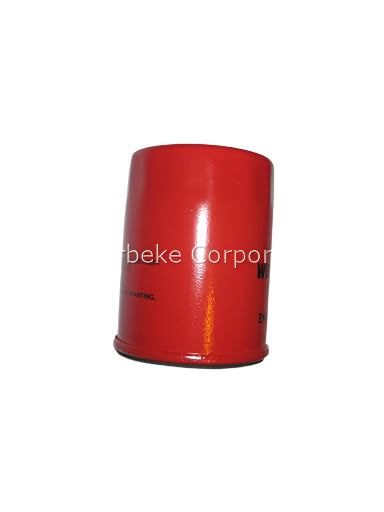

Westerbeke 048078 Lube Oil filter

Westerbeke 048078 Lube oil filter for 3.0/3.5 kw Petrol gen

$38.50 - $38.50
$38.50
$38.50 - $38.50
$38.50
